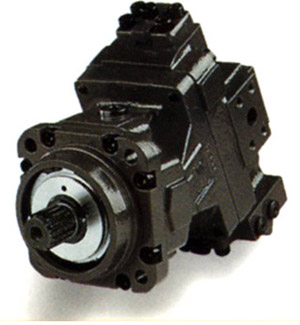

VOAC V12
Features
- Very high operating speeds
- Displacement ratio 5:1
- Pressures to 482 Bar (7000 PSI)
- Very high power capability
- High starting torque
- Low weight
- High overall effeciency
- Axial or side ports
- Controls available for most needs
- ISO, SAE and cartridge versions
Specifications
Frame size V12 | -60 | -80 | -110 | -160 |
---|---|---|---|---|
Displacement: 35* (max): cm3/rev) | 60 | 80 | 110 | 160 |
(in3/rev) | 3.66 | 4.88 | 6.71 | 9.76 |
6.5* (min): (cm3/rev) | 12 | 16 | 22 | 32 |
(in3/rev) | 0.73 | 0.98 | 1.34 | 1.95 |
Max continuous pressure (Bar) | 420 | 420 | 420 | 420 |
(PSI) | 6090 | 6090 | 6090 | 6090 |
Max operating speed* (RPM) | 7000 | 6250 | 5600 | 5000 |
