PM 25 Contrôle Hydro (7525060040)0003

Features

  • Variable displacement
  • For closed loop circuits
  • Rugged and compact
  • Integral charge pump
  • Tandem mounting available
  • Mounting flange: SAE A, SAE B, SAE BB

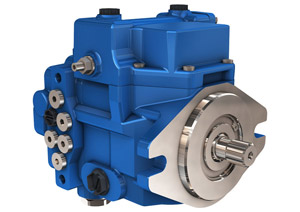

Poclain PM25 Contrôle Hydro Hydraulic Pump
PMV0 PM10 PM25 PM45 PM60
Displacementcm³/trtr
[cu.in/rev.]
7 to 18
[0.43 - 1.10]
7 to 18
[0.43 - 1.10]
20 to 28
[1.22 - 1.71]
35 to 52
[2.14 - 3.17]
55 to 65
[3.41 - 3.97]
Max. pressurebar [PSI]300 [4 350]350 [5 076]350 [5 076]350 [5 076]350 [5 076]
Max. speedRPM3 6003 6003 6003 6003 600
Max. powerkW [HP]30,5 [40.9]35,3 [47.3]53,8 [72.1]99,8
[133.8]
124,8 [167.3]
Weightkg [lb] 8 [17.6] 18 [39.7] 18 [39.7] 28 [61.7] 31 [68.3]
Mounting
flange
SAE A SAE A, B SAE B SAE B, BB SAE B, BB
A - Mechanical servo control
B - Electrical on-off servo control with return
springs
C - Electrical on-off servo control without return
springs
D - Hydraulic Automotive Control
Controls M - Direct mechanical
N - Direct mechanical with spring return
P - Electro-proportional servo control
Q - Electro-proportional servo control with feedback
S - Hydraulic servo control
T - Hydraulic servo control with feed-back
PMV0 PM10 PM25 PM45 PM60
DocumentationA35764Z A35766B A35767C A35768D A35769E
