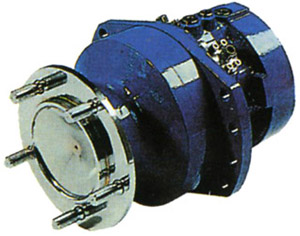

MS Wheel Motor

Features

  • Single-acting, spring return
  • Industry leading size range, with displacements from 0, 2 to 151
  • Versatility of concept offering suitability for most applications
  • Unparalleled inventory of configurations, with various combinations of motor modules
  • High performance, including high starting torques, high mechanical and volumetric efficiencies, and low noise and inertia
  • Hydrostatic service braking, inherent in the motor design
  • Small package size, providing tremendous machine design flexibility
  • Excellent low speed running characteristics

Specifications

MS02MS02MS02MS05MS05MS05MS05MS05MS05MS08MS08MS08
Displacement* (cm3/rev)1722132553983764685607506277809341248
Maximum Torque Nm
(Theoretical)		120015001800250027003350400047504500560067008000
Maximum pressure (Bar)450450450400450450450400450450450400
Maximum speed rpm390310260180250240200160210170140105
Maximum power kW181818222929292941414141
MS11MS11MS11MS18MS18MS18MS18MS18MS18MS25MS25
Displacement* (cm3/rev)8371048125916871395174720992808200424983006
Maximum Torque Nm
(Theoretical)		6000750090001070010000125001500017800143001785021500
Maximum pressure (Bar)450450450400450450450400450450450
Maximum speed rpm20018015012016015012590145140115
Maximum power kW5050505070707070909090
MS35MS35MS35MS50MS50MS50MS83MS83MS83MS125MS125MS125
Displacement* (cm3/rev)3143349441984008499660126679832810019100001250015000
Maximum Torque Nm
(Theoretical)		225002250030000286003570043000477006000071500715007700077000
Maximum pressure (Bar)450450450450450450450450450450380380
Maximum speed rpm140130110145135110857070554535
Maximum power kW110110110140140140200200200240240240

MS BRAKES

Multidisc brake

Multidisc brake

Features

  • Failsafe: spring applied, hydraulically released
  • Fully enclosed
  • Choice of brake torques per motor framesize
  • Can be used in an emergency to stop the vehicle
BrakeParkingNm [lbf.ft]Emergency Nm [lbf.ft]02030508111825355083125
F021 400 [1 032]910 [671]
F032 500 [1 843]1 625 [1 198]
F044 220 [3 112]2 740 [2 020]
F053 060 [2 256] 1 990 [1 467]
F085 620 [4 145]3 650 [2 692]
F099 000 [6 638] 5 850 [4 314]
F1211 840 [8 732]7 700 [5 679]
F1918 600 [13 718] 12 800 [9 440]
F2626 730 [19 715]17 375 [12 815]
F3520 500 [15 120]20 500 [15 120]
F4225 000 [18 439]16 250 [11 985]
F5030 000 [22 126] 22 200 [16 373]
F8342 000 [30 977]27 300 [20 135]

Options

MS02030508111825355083125
Speed sensor2
Mechanical free-wheeling4
Case flushing (additional drain port)5
Industrial bearing support6
Diamond™ extra-long life7
Chassis mounting on cam-ring side9
Hollow shaftA
Drain on the bearing supportB
Reinforced external seals (duo-cone)C
High pressure shaft sealingE
High volumetric efficiencyH
Surface heat treatment of the shaftJ
Higher speedM
Soft shiftT
Commercial codeAvailableStandard
